Hydraulic press brake with a provided 3000 mm bending length for long formed sections.
Machine overview

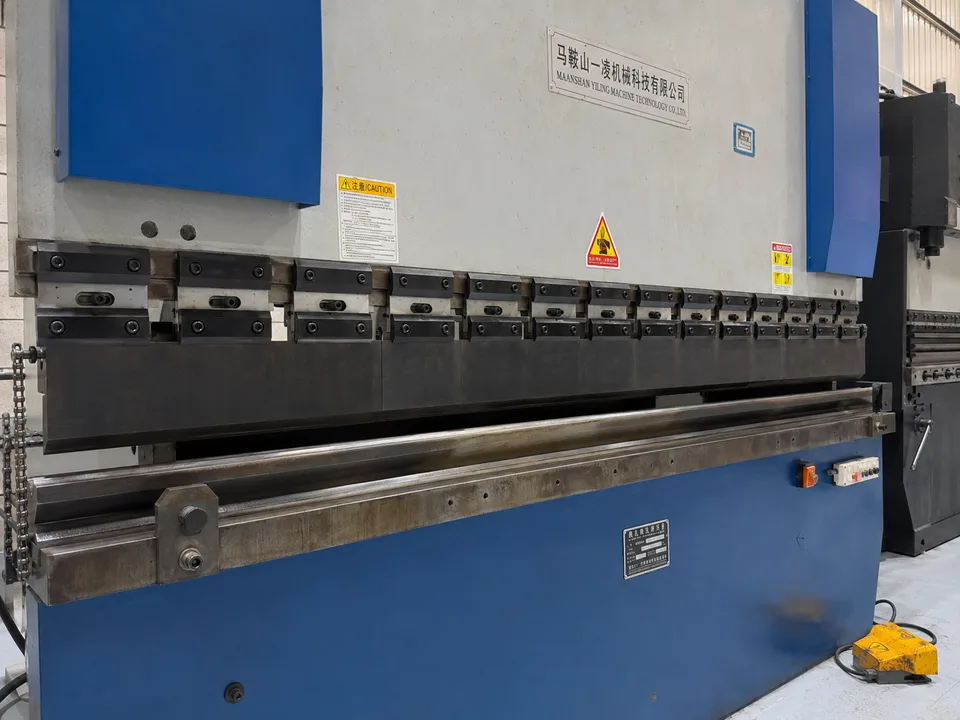

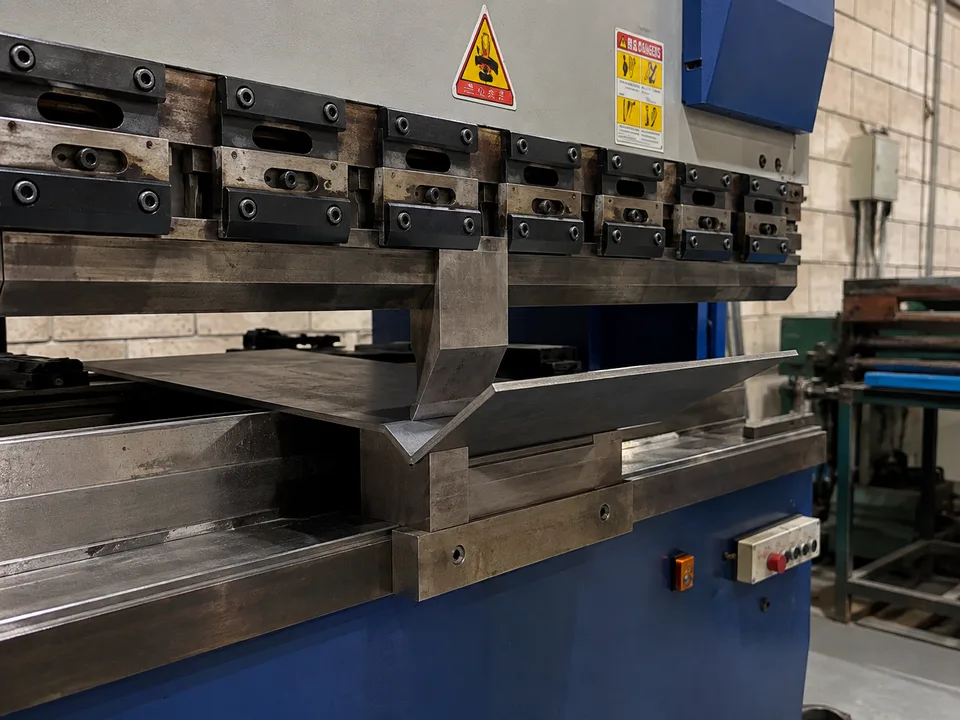

The Maanshan Yiling press brake is a hydraulic sheet metal bending machine manufactured in China. It is used to form flat sheet metal by straight bending, producing sections, channels, trays, and brackets. The provided maximum bending length is 3000 mm and the provided capacity is 5 ton.
Specifications
Capabilities
Representative parts this machine is equipped to produce. Each one is an illustrative manufacturing capability example, not a completed customer project.

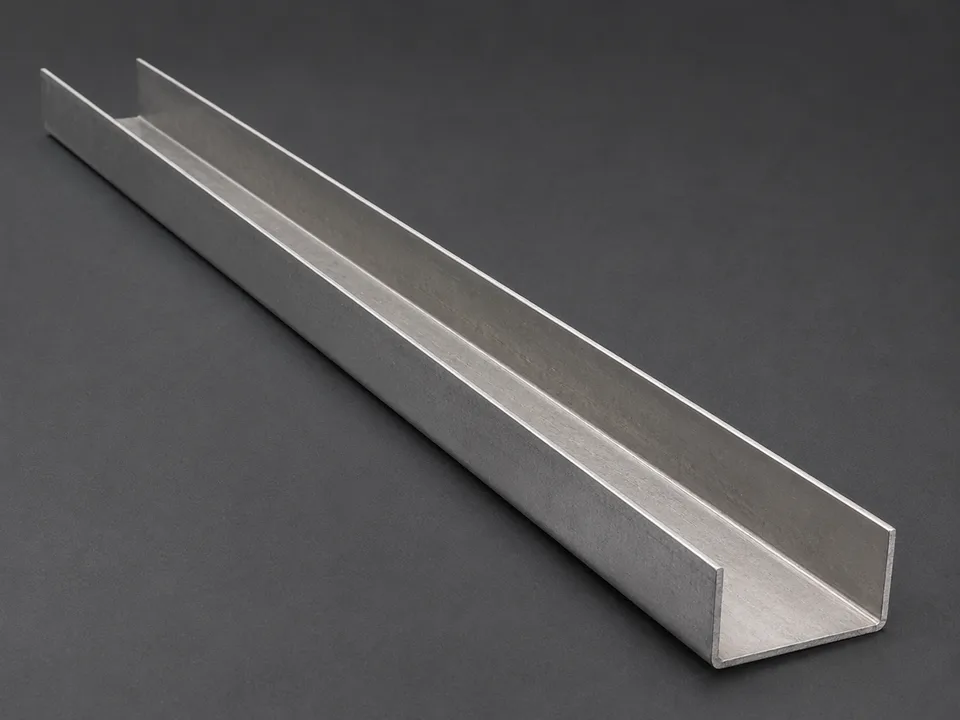

Manufacturing Capability ExampleA long U-shaped channel formed from one sheet using two parallel longitudinal bends. It demonstrates straight bend lines, consistent flange height, and uniform forming along the component length.
Carbon Steel

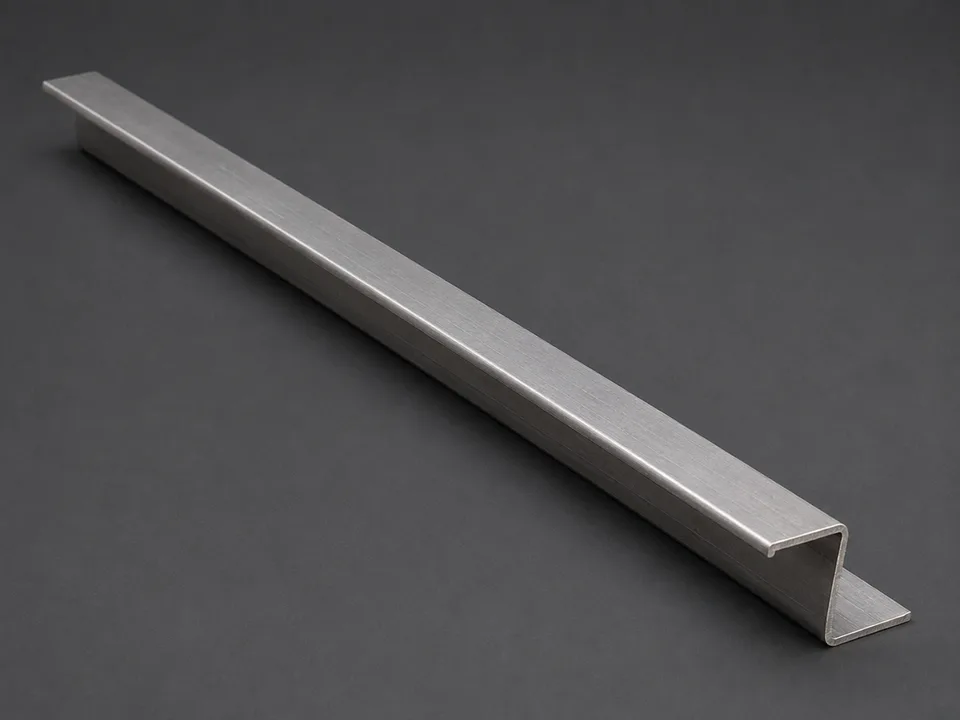

Manufacturing Capability ExampleA long Z-section formed from one continuous sheet using two parallel bends in opposite directions. It demonstrates precise offset forming and consistent longitudinal geometry.
Carbon Steel

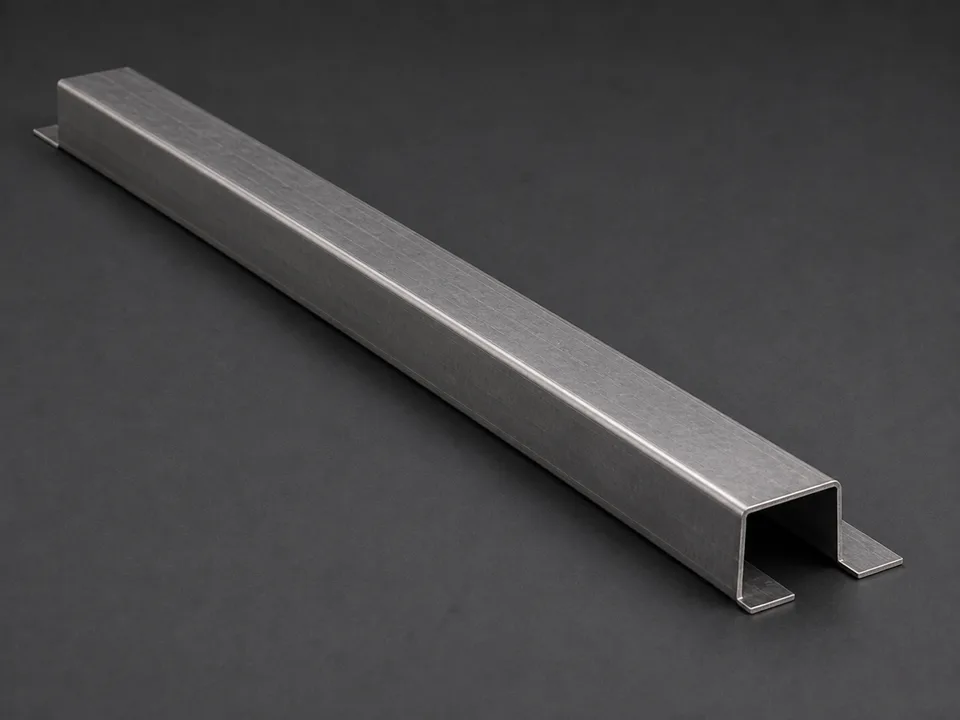

Manufacturing Capability ExampleA long Hat / Omega reinforcement profile formed from a single sheet with four parallel longitudinal bends, a raised central web, and outward mounting flanges.
Carbon Steel

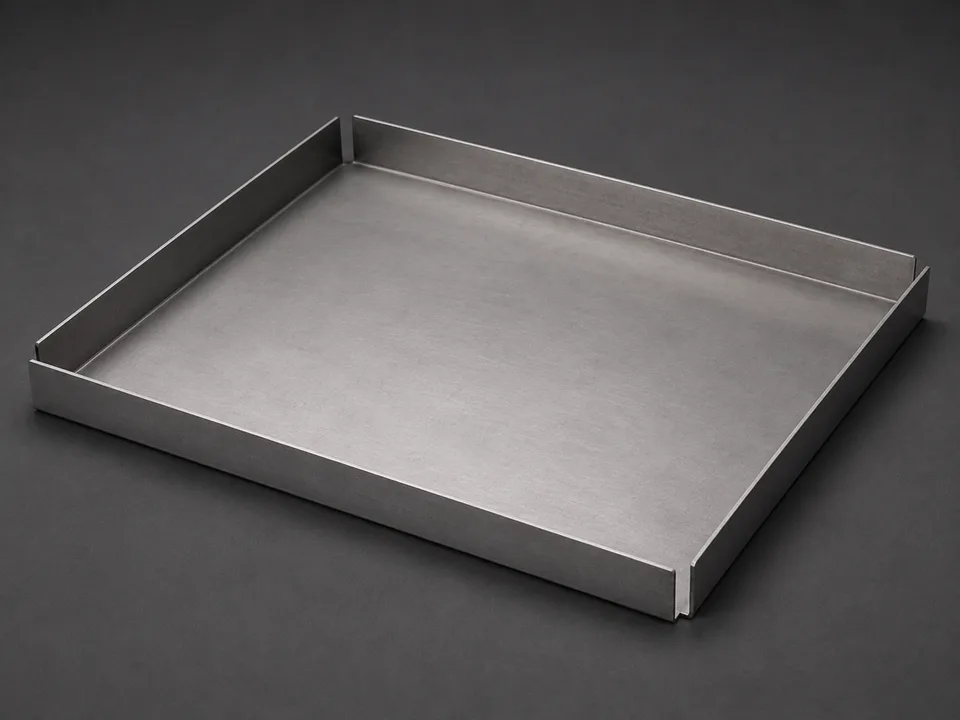

Manufacturing Capability ExampleA large shallow equipment tray formed from one sheet with a flat base and four perimeter flanges. Open corner reliefs keep the example press-brake-manufacturable without welded corners.
Carbon Steel

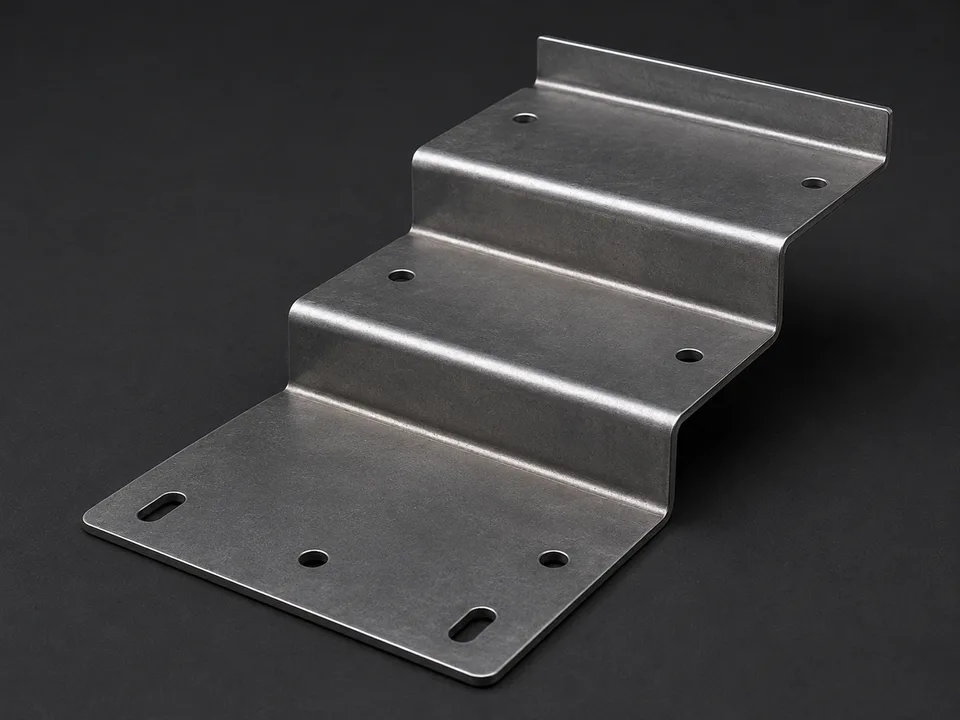

Manufacturing Capability ExampleA broad stepped equipment bracket formed from one continuous sheet, using parallel bends to create multiple mounting elevations. Limited simple holes may appear on flat mounting areas.
Carbon Steel
Press-brake bending remains the primary capability shown in the capability examples. They do not imply welding, machining, threading, or rolling.
Send us your drawing or sample and we will match it to the right machine.
