CNC Milling

YCM E5 CNC Milling Machine

CNC milling machine with Fanuc control and a 1000 × 600 mm table.

Brand
YCM
Model
E5
Control System
Fanuc Control System
Table Size
1000 × 600 mm
Request a quote
CNC Milling Machine — YCM · E5

Machine overview

The YCM E5 is used for face milling, drilling, pocketing, and slotting of metal components. Manufactured in Taiwan, it has Fanuc control and a 1000 × 600 mm table. Part dimensions, workholding, and tooling are reviewed before machining.

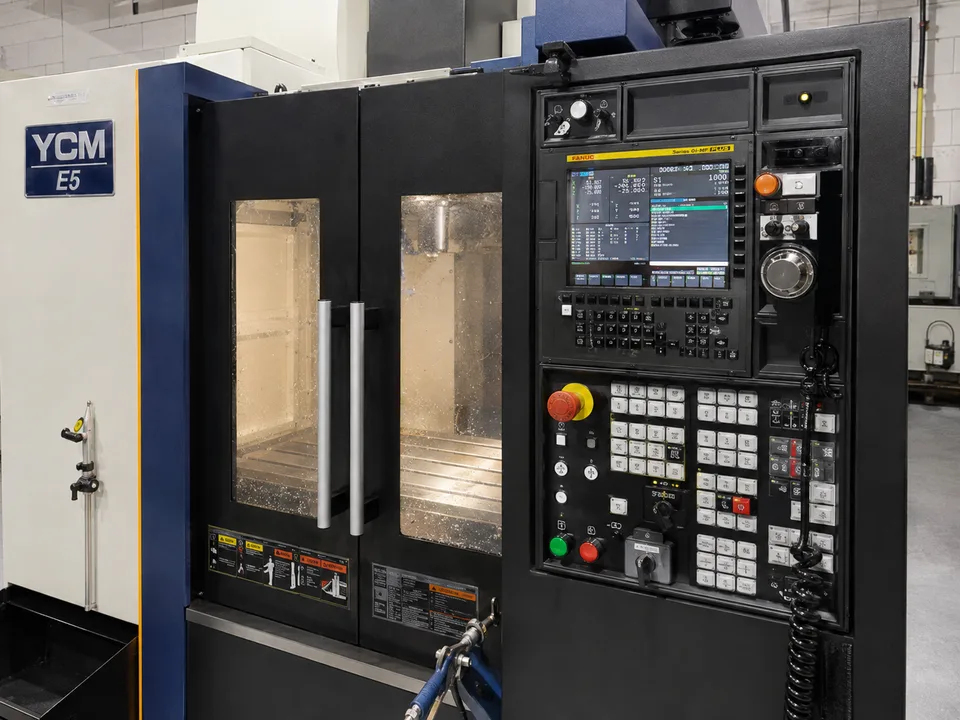

CNC Milling Machine — detail view

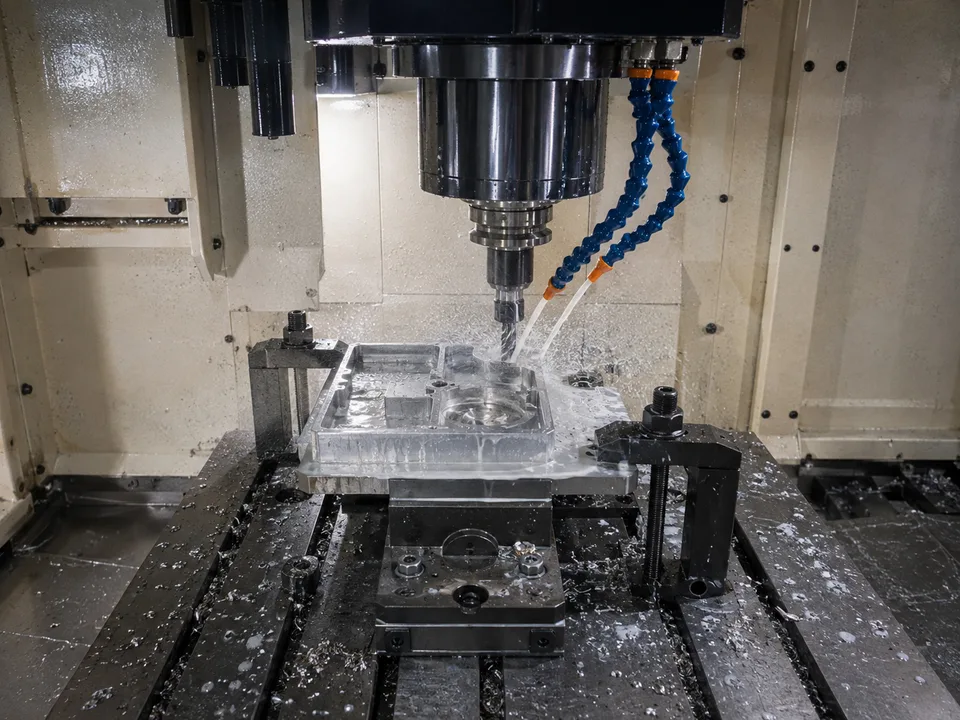

CNC Milling Machine — in operation

Technical Specifications

Brand
YCM
Model
E5
Control System
Fanuc Control System
Table Size
1000 × 600 mm
Country of Origin
Taiwan

Machining & Processing Capabilities

  • Milling Metal Components
  • Face & Surface Milling
  • Drilling
  • Pocket Milling
  • Slot & Groove Machining
  • Mounting Bases, Manifold Blocks, Bearing Housings & Gearbox Housings

Machine Application Examples

Illustrative manufacturing capability examples, not photographs of completed client projects. Each part is assessed against its dimensions, material, machine setup, and tooling.

Mounting BaseManufacturing Capability Example

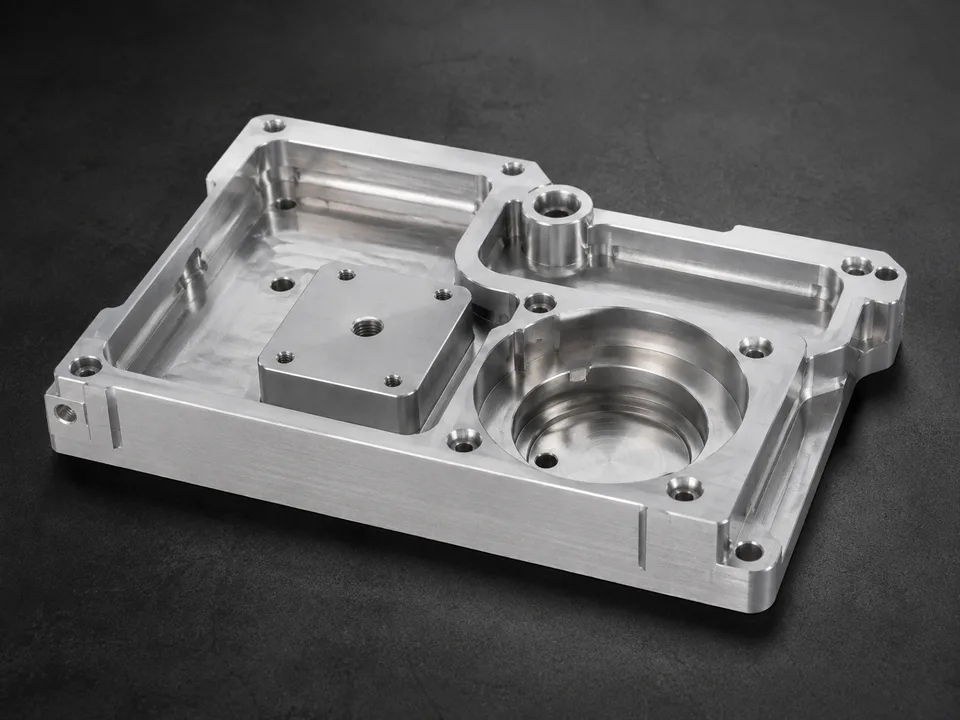

Mounting Base

A precision industrial mounting base illustrating CNC milling and drilling capability. The proposed geometry includes flat machined faces, mounting holes, counterbores, pockets or slots, and chamfered edges.

Suggested processes
  • CNC Milling
  • Drilling

Suggested materialAluminum 6061

Visible features
  • Flat machined faces
  • Mounting holes and counterbores
  • Pockets or slots
  • Chamfered edges
Suggested applications
  • Industrial fixtures
  • Equipment mounting
  • Mechanical assemblies
  • Production-line tooling
Hydraulic Manifold BlockManufacturing Capability Example

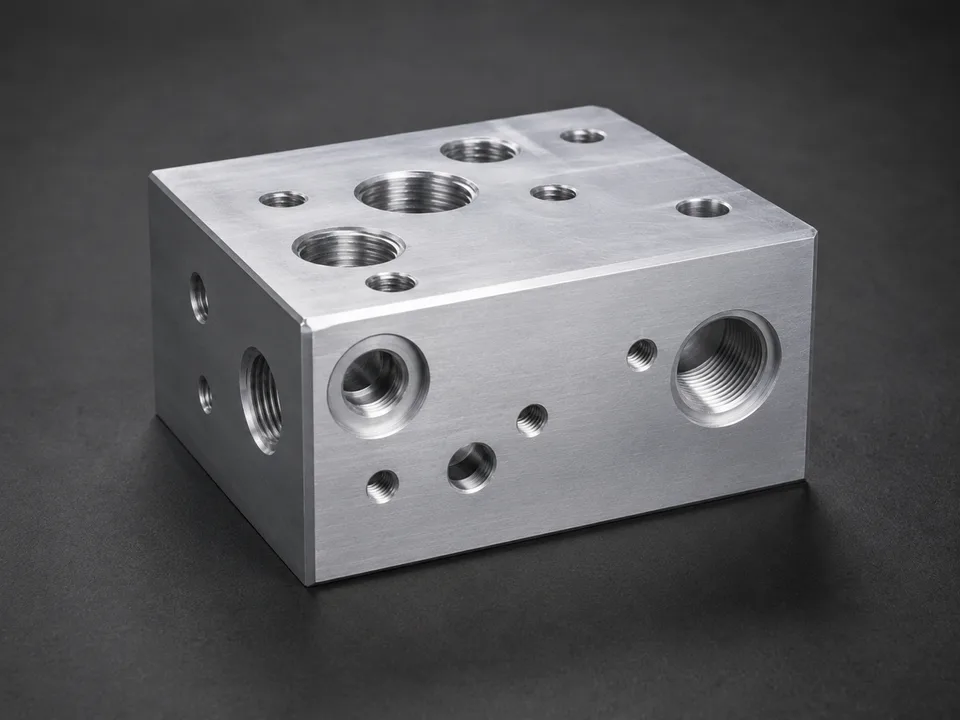

Hydraulic Manifold Block

An industrial manifold-block capability example showing milling, drilling and tapping across multiple faces. The proposed component includes precision holes, threaded ports, counterbores, flat machined faces and chamfered edges.

Suggested processes
  • CNC Milling
  • Drilling
  • Tapping

Suggested materialAluminum 6061

Visible features
  • Multiple ports on different faces
  • Threaded holes
  • Counterbores
  • Flat milled faces
  • Chamfered edges
Suggested applications
  • Hydraulic systems
  • Industrial machinery
  • Fluid-control assemblies
  • Production equipment
Machined Camera HousingManufacturing Capability Example

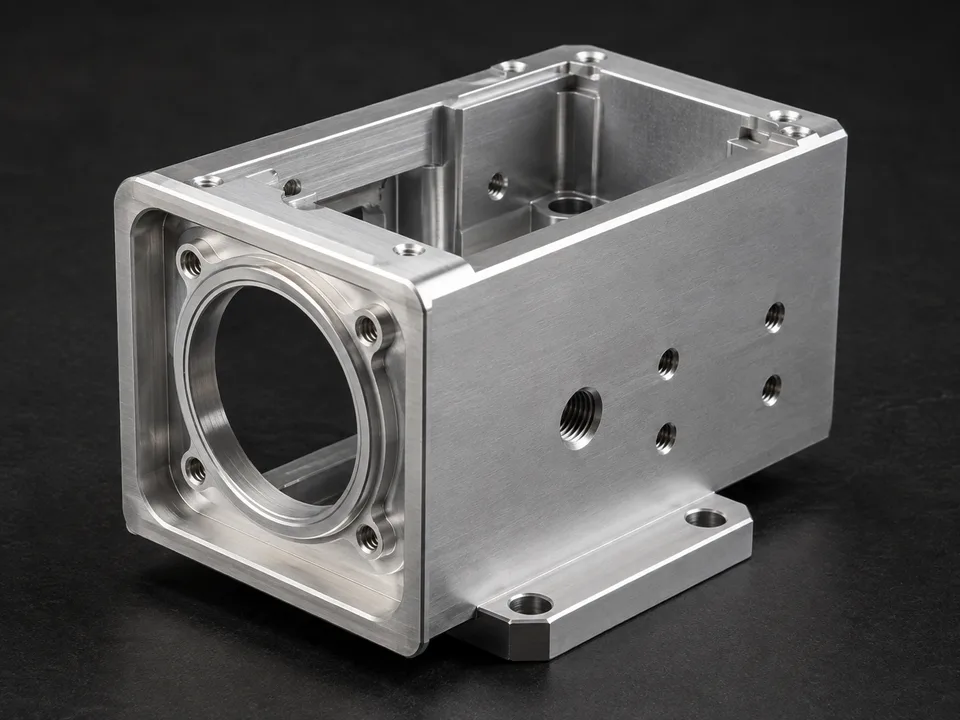

Machined Camera Housing

A machined aluminum housing representing an enclosure for an industrial camera or monitoring component. The proposed geometry includes a circular front opening, internal pocket, mounting faces, threaded holes and chamfered edges. The image represents the housing body only, without lenses, electronics or wiring.

Suggested processes
  • CNC Milling
  • Drilling
  • Pocketing
  • Tapping

Suggested materialAluminum 6061

Visible features
  • Circular front opening
  • Internal machined cavity
  • Mounting faces
  • Threaded holes
  • Realistic cutter-radius internal corners
Suggested applications
  • Industrial surveillance
  • Machine-vision systems
  • Optical sensors
  • Monitoring equipment
Bearing HousingManufacturing Capability Example

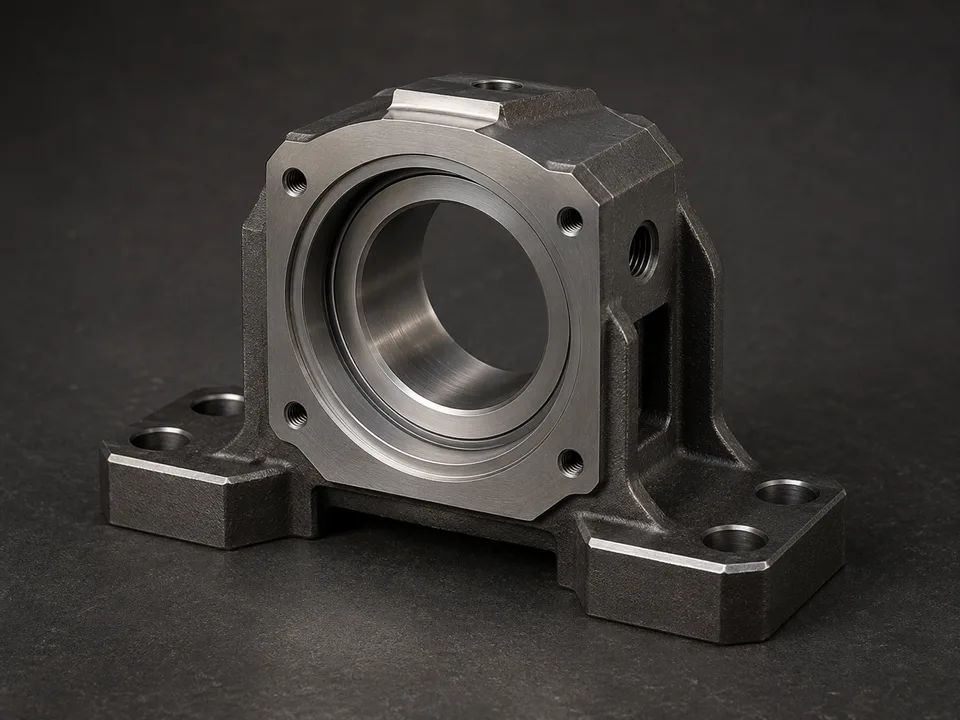

Bearing Housing

An industrial bearing-housing capability example demonstrating milling, precision boring, drilling and tapping. The proposed component includes a large central bore, bearing seat, mounting base, bolt holes and machined reference surfaces. The image represents the empty housing only, without a bearing, shaft or fasteners.

Suggested processes
  • CNC Milling
  • Precision Boring
  • Drilling
  • Tapping

Suggested materialCarbon Steel

Visible features
  • Large central bore
  • Internal bearing seat
  • Stable mounting base
  • Bolt-hole pattern
  • Machined reference surfaces
Suggested applications
  • Rotating equipment
  • Conveyors
  • Pumps
  • Industrial machinery
Gearbox HousingManufacturing Capability Example

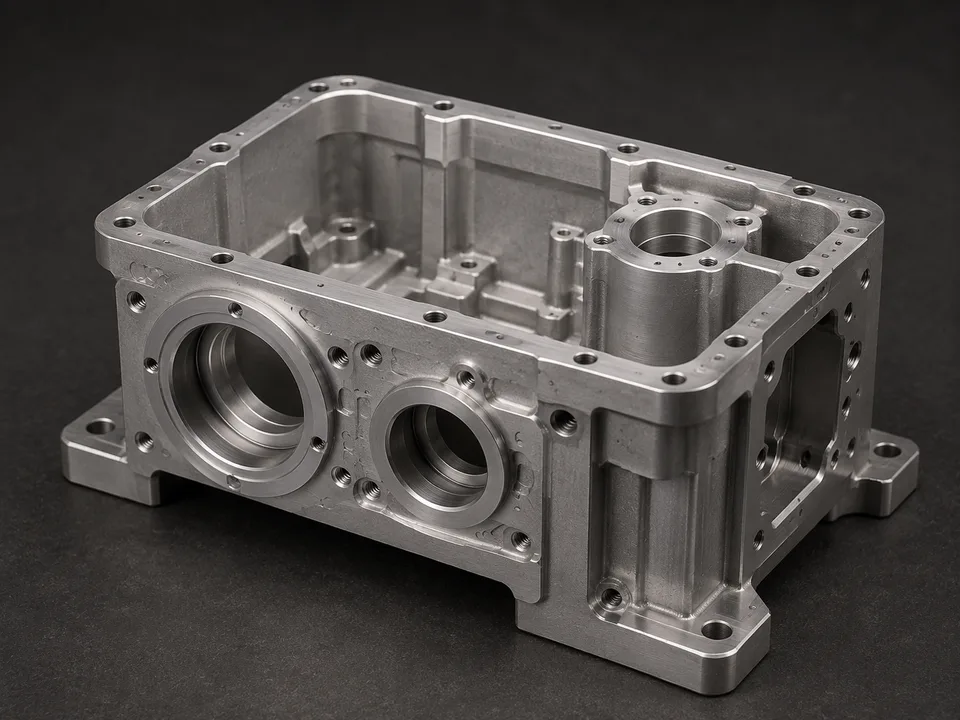

Gearbox Housing

An industrial gearbox-housing capability example showing milling, precision boring, pocketing, drilling and tapping. The proposed geometry includes an internal cavity, shaft openings, bearing seats, mounting surfaces, threaded holes and a cover flange. The image shows the empty housing only, without gears, shafts, bearings or a separate cover.

Suggested processes
  • CNC Milling
  • Precision Boring
  • Pocketing
  • Drilling
  • Tapping

Suggested materialAluminum 6061

Visible features
  • Main internal cavity
  • Shaft openings
  • Bearing seats
  • Cover flange
  • Threaded-hole pattern
Suggested applications
  • Mechanical power transmission
  • Industrial machinery
  • Gear assemblies
  • Automation equipment

Request a quote

Send your drawing or sample details, material, quantity, and target delivery date so our team can review the appropriate manufacturing method.
