CNC Turning

YCM GT 300 LMA CNC Lathe

CNC lathe with Fanuc control and a 10-inch chuck for turned components made to drawings.

Brand
YCM
Model
GT 300 LMA
Control System
Fanuc Control System
Chuck Diameter
10 inches
Request a quote
CNC Lathe Machine — YCM · GT 300 LMA

Machine overview

The YCM GT 300 LMA supports external and internal turning, facing, boring, grooving, and threading. It has Fanuc control and a 10-inch chuck. Part suitability depends on dimensions, workholding, and available tooling.

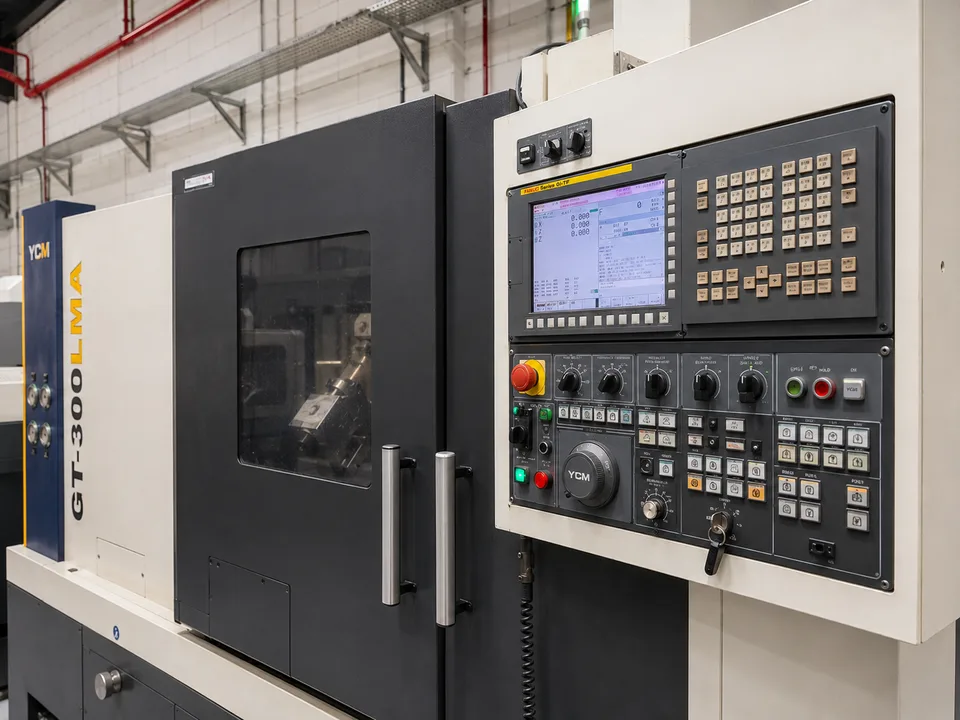

CNC Lathe Machine — detail view

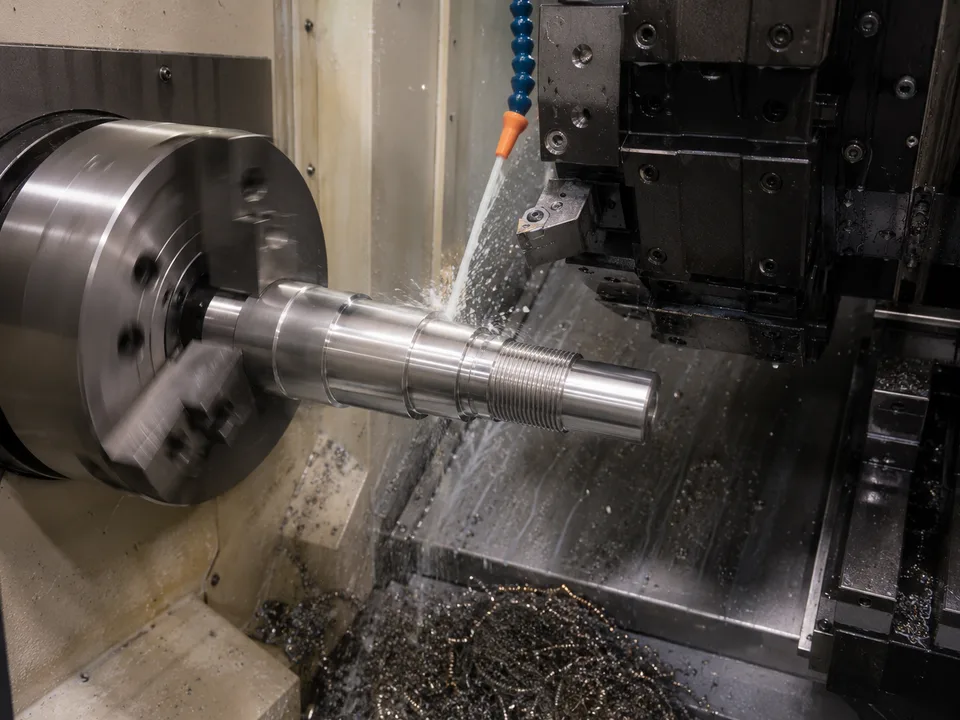

CNC Lathe Machine — in operation

Technical Specifications

Brand
YCM
Model
GT 300 LMA
Control System
Fanuc Control System
Chuck Diameter
10 inches
Working Length
1300 mm
Country of Origin
Taiwan

Machining & Processing Capabilities

  • Turning Cylindrical Components
  • External & Step Turning
  • Facing & Shoulder Machining
  • Internal Boring
  • External & Internal Threading Subject to Tooling
  • Circular Grooving
  • Taper Turning
  • Chamfering
  • Shafts, Bushings, Hubs, Rollers, Collars & Adapters

Machine Application Examples

Illustrative manufacturing capability examples, not photographs of completed client projects. Each part is assessed against its dimensions, material, machine setup, and tooling.

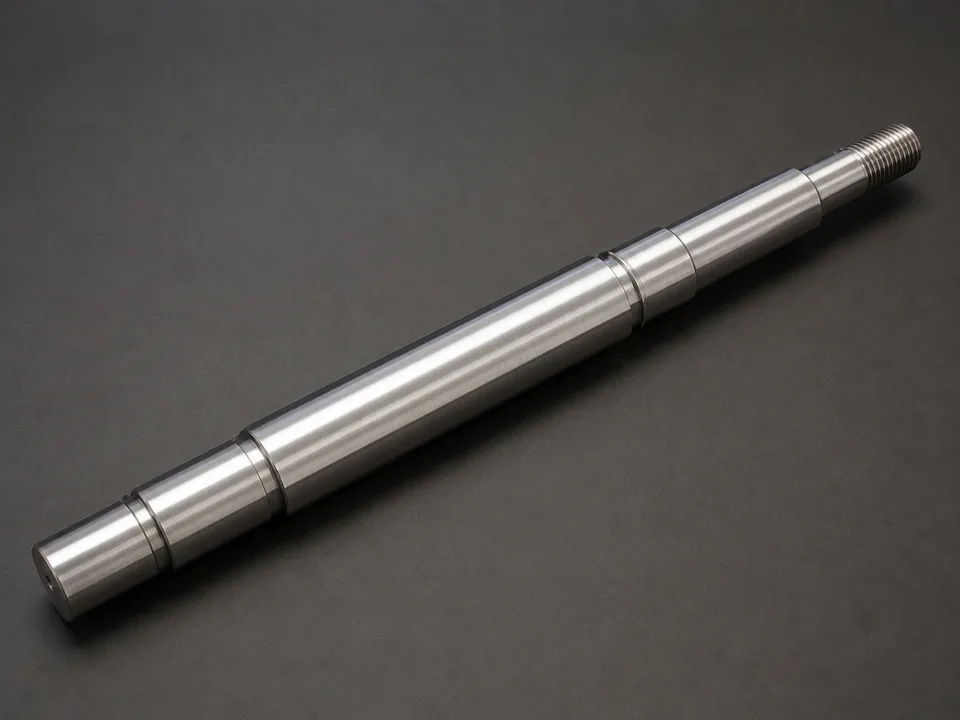

Stepped Drive ShaftManufacturing Capability Example

Stepped Drive Shaft

This example illustrates the capability to turn long cylindrical parts with stepped diameters, shoulders, bearing seats, a groove, and external threading.

Suggested processes
  • CNC Turning
  • Facing
  • Step Turning
  • Grooving
  • Chamfering
  • External Threading

Suggested materialAlloy Steel

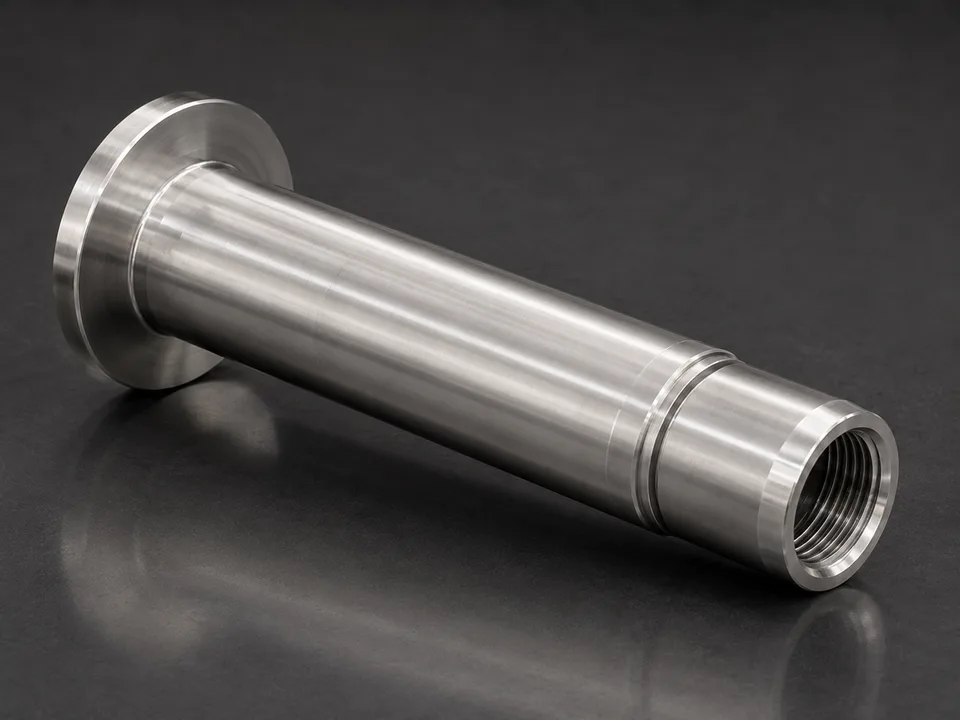

Flanged Internally Threaded SleeveManufacturing Capability Example

Flanged Internally Threaded Sleeve

This example illustrates the capability for external turning, boring, internal threading, an integrated flange, and circular grooves.

Suggested processes
  • CNC Turning
  • Facing
  • External Turning
  • Boring
  • Internal Threading
  • Grooving
  • Chamfering

Suggested materialStainless Steel 304

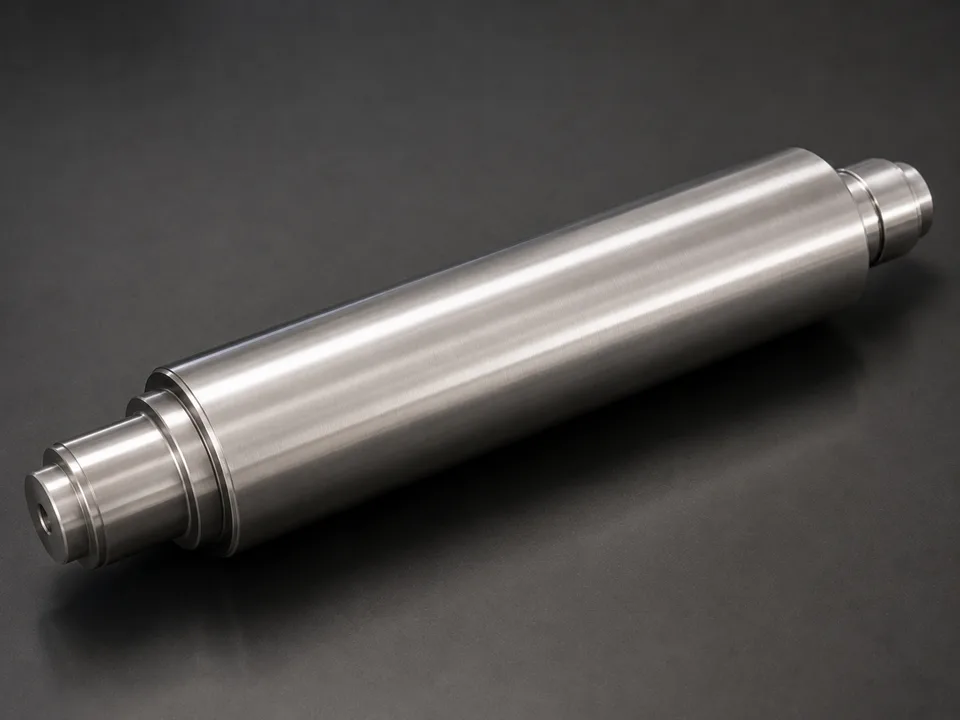

Industrial Conveyor RollerManufacturing Capability Example

Industrial Conveyor Roller

This example illustrates the capability to produce a long cylindrical body with end journals, bearing seats, and concentric circular grooves.

Suggested processes
  • CNC Turning
  • Facing
  • External Turning
  • Step Turning
  • Grooving
  • Boring
  • Chamfering

Suggested materialCarbon Steel

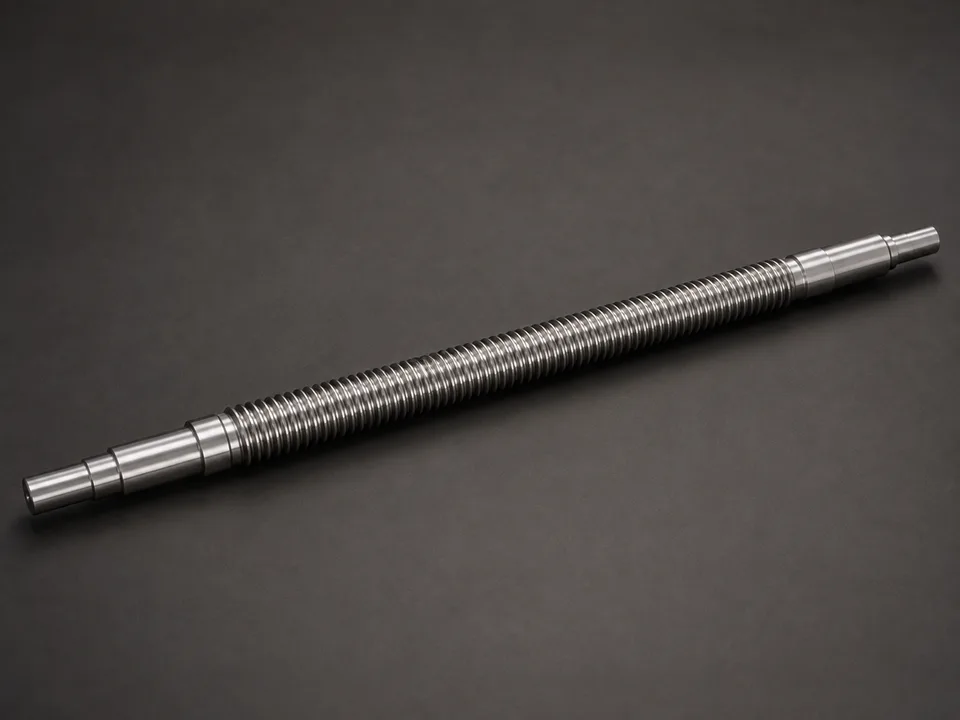

Industrial Lead ScrewManufacturing Capability Example

Industrial Lead Screw

This example illustrates the capability for extended external threading, long turning, stepped diameters, bearing seats, and relief grooves.

Suggested processes
  • CNC Turning
  • Facing
  • External Threading
  • Step Turning
  • Grooving
  • Chamfering

Suggested materialAlloy Steel

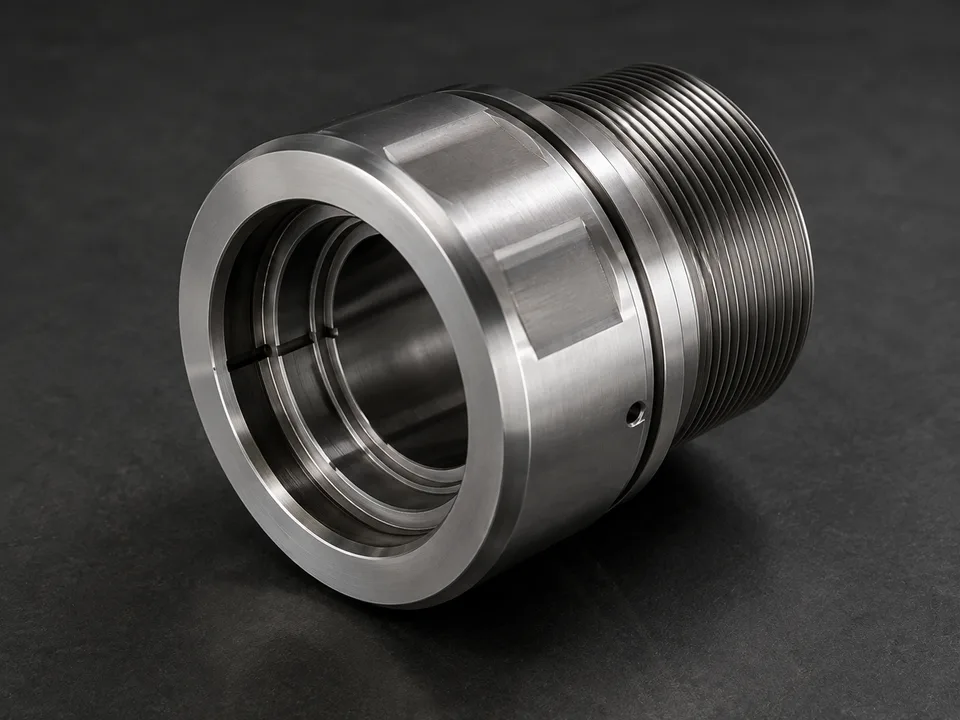

Hydraulic Cylinder GlandManufacturing Capability Example

Hydraulic Cylinder Gland

This example illustrates the capability for precision boring, internal and external threading, seal grooves, and concentric surfaces.

Suggested processes
  • CNC Turning
  • Facing
  • Precision Boring
  • Internal Threading
  • External Threading
  • Internal Grooving
  • External Grooving
  • Chamfering

Suggested materialAlloy Steel
